Front Diamond Plate Corners for Suzuki SJ - Samurai, 3+2 Aluminium

The front corners of the Samurai are the first place to get marked. Tight manoeuvres, branches, rock, a wall taken in reverse: after forty years, an untouched one is hard to find.

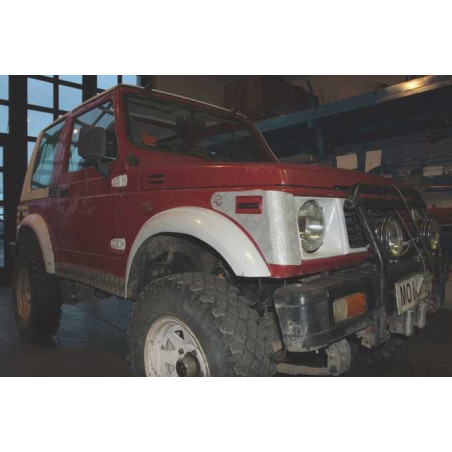

The MG Off Road front corner guards are made from 3+2 aluminium diamond plate — 3 mm base plus 2 mm relief — and wrap the full exposed corner of the wing.

They protect, and they cover

The guard works on two fronts. On sound metal it acts as a barrier: it takes the hit instead of the wing, and if badly damaged it gets replaced. On metal that is already marked, it covers the dent and gives the corner a clean line back, without a trip to the body shop.

The diamond relief is not just a look: the pressed pattern stiffens the plate, so at equal thickness it resists bending better than a flat surface.

Aluminium, not steel

Aluminium does not rust. A painted steel guard, once chipped by rock, starts corroding exactly where mud and salt sit — and passes the rust on to the panel underneath. That problem does not arise here.

Indicator cut-out

The opening for the indicator is already formed in the panel. No trimming on fitting, no changes to the wiring.

Installation

Fitting can be done two ways:

• Bonded — with structural sealant or automotive silicone, without drilling the original panel
• Riveted — aluminium drills and rivets with no special tooling, for a firmer mechanical fixing

A note on fitting

The Samurai was built for over twenty years, and after decades of use, repairs and replaced panels, no two of them share exactly the same corner radius.

Depending on the wings fitted to your vehicle, some minor adjustment may be needed during installation. This is the normal condition for this type of product, and is stated by overseas manufacturers of the same item.

Complete the protection

Rear corner guards are also available. The full front + rear kit is the better value.

Designed and built entirely in Italy, in our workshop in the Apennines.

Key features

• 3+2 aluminium diamond plate (3 mm base, 2 mm relief — 5 mm total)
• Indicator cut-out already formed
• Diamond relief stiffens the panel
• Rust-free: resists mud, water crossings and road salt
• Covers existing dents on the corner
• Sacrificial function: replaceable if badly damaged
• Bonded or riveted installation
• No welding required
• Sold as a pair (left and right)
• Rear corner guards and full kit also available
• Exclusive MG Off Road design
• Designed and manufactured entirely in Italy

Fitment

• Suzuki SJ 410
• Suzuki SJ 413
• Suzuki Samurai (1981-1998)
• Suzuki Santana (up to 2004)

What's included

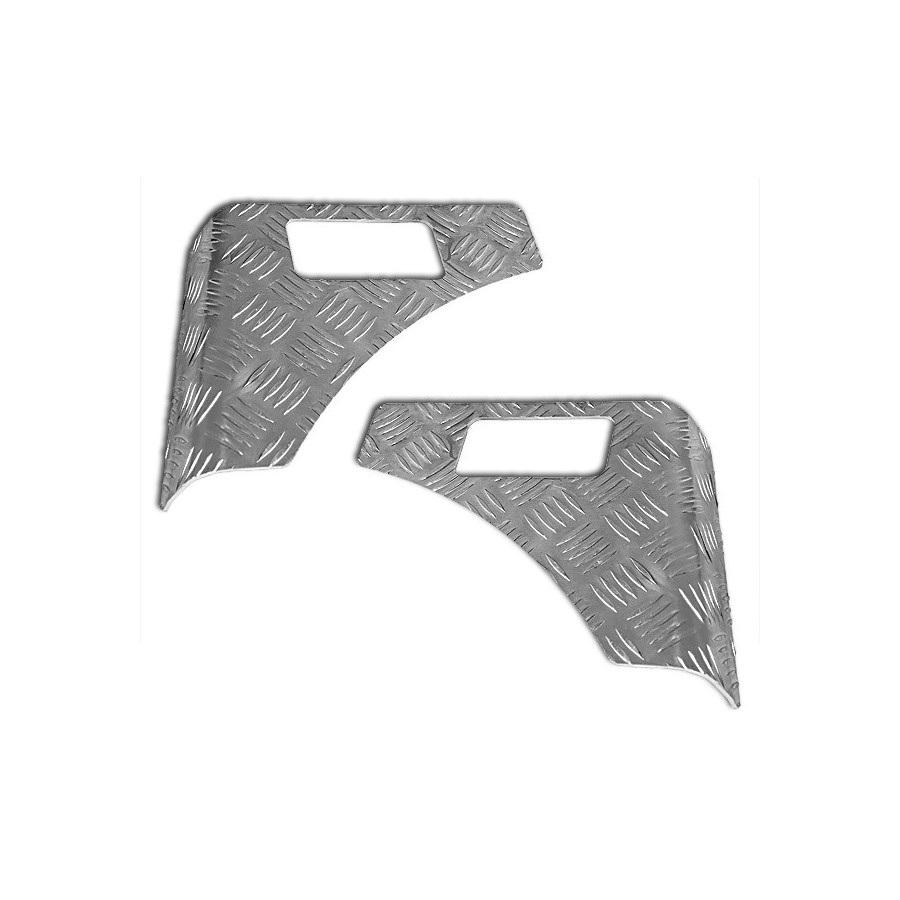

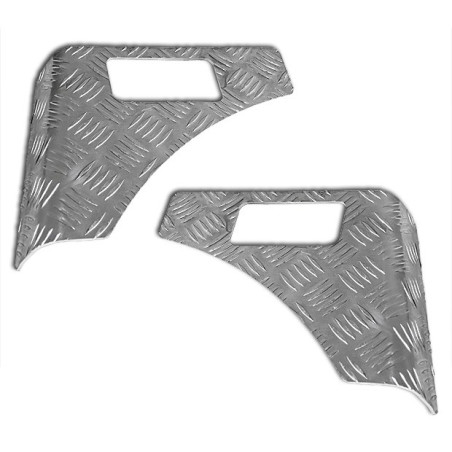

• Pair of front corner guards in 3+2 aluminium diamond plate (left and right)
• Panels ready to fit

Sealant and rivets not included: the choice of fixing method is left to the installer.

Join the expedition, join MG Off Road.

Shipping: Every corner guard is handcrafted in our workshop. Orders ship within 6 days. For specific requirements or urgent orders, get in touch.
