Single Corner Guard for Suzuki SJ - Samurai, 3+2 Diamond Plate

You do not always need all four. One corner caught badly on rock, one side that has already taken its share while the other is still clean, a guard that has done its job and needs replacing.

This page lets you buy a single corner guard, choosing exactly the one you need.

Select your piece

From the menu above you can choose:

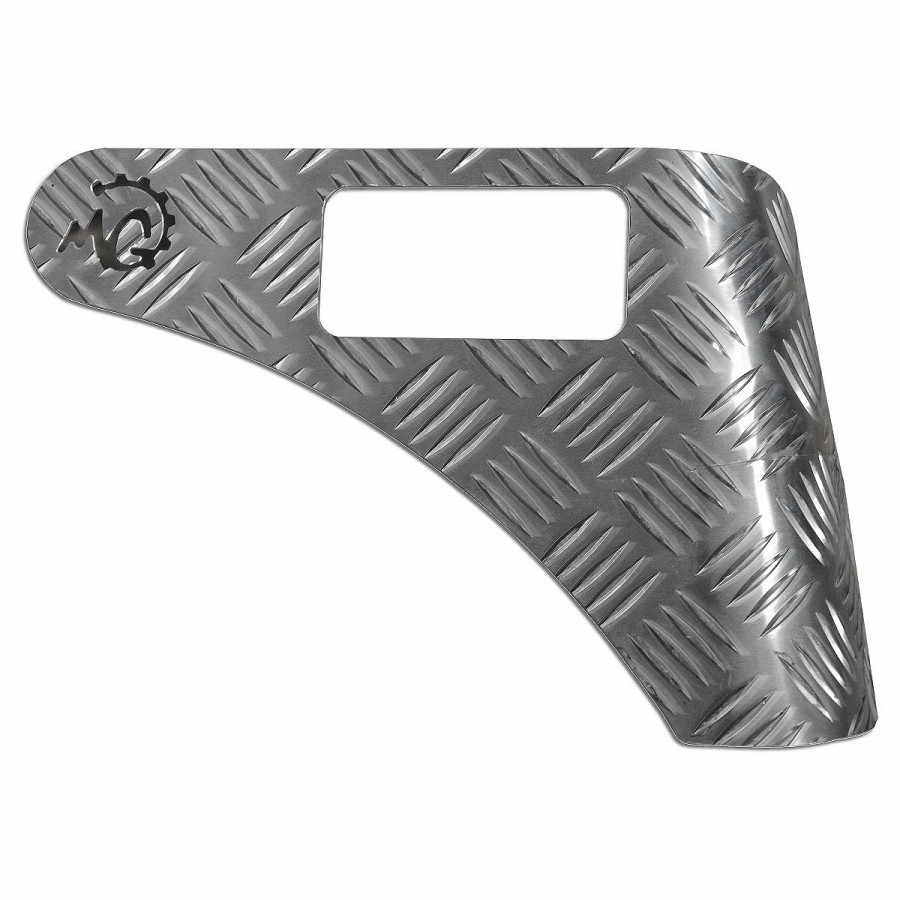

• Front right or front left — with the indicator cut-out already formed
• Rear right or rear left — with the fuel filler cut-out

The rear guards come in soft top or hard top versions: the body profile differs between the two and the parts are not interchangeable. The front guards are identical on both.

The guard gets replaced, the corner does not

That is the principle these guards are built on. The panel takes the hit instead of the bodywork: if the damage is bad, you replace that one piece and the vehicle's corner stays original. Body shop work on a Samurai costs considerably more.

The same applies to metal that is already marked: the guard covers the dent and gives the corner a clean line back.

Construction

All guards are made from 3+2 aluminium diamond plate — 3 mm base plus 2 mm relief, 5 mm total. The pressed pattern stiffens the plate, so at equal thickness it resists bending better than a flat surface.

Aluminium does not rust: unlike a painted steel guard, a chip does not start corrosion, neither on the panel nor on the metal beneath.

Rear guards cut and welded to follow the profile

The Samurai's rear corner is not a simple curve. A 5 mm plate cannot follow it by bending alone: every rear guard is cut in half and re-welded to reproduce the real curvature of the body and sit flush across the whole surface.

The weld stays visible on the diamond relief: that is what a part built around the real profile looks like.

Available finishes

• Bare — natural, unpainted diamond plate
• Micaceous black — industrial micaceous iron oxide finish with a textured surface: high corrosion resistance and excellent at hiding trail marks

Installation

Fitting can be done two ways:

• Bonded — with structural sealant or automotive silicone, without drilling the original panel
• Riveted — aluminium drills and rivets with no special tooling, for a firmer mechanical fixing

A note on fitting

The Samurai was built for over twenty years, and after decades of use, repairs and replaced panels, no two of them share exactly the same corner radius.

Depending on your vehicle's bodywork, some minor adjustment may be needed during installation. This is the normal condition for this type of product, and is stated by overseas manufacturers of the same item.

Need all of them?

If you are protecting the whole vehicle, the full front + rear kit is the better value.

Designed and built entirely in Italy, in our workshop in the Apennines.

Key features

• Single corner guard, your choice of front or rear, left or right
• 3+2 aluminium diamond plate (3 mm base, 2 mm relief — 5 mm total)
• Indicator cut-out on the front guards, fuel filler cut-out on the rear
• Rear guards cut and welded to follow the real body curvature
• Rear guards available for soft top or hard top
• Available bare or in micaceous black
• Diamond relief stiffens the panel
• Rust-free: resists mud, water crossings and road salt
• Covers existing dents on the corner
• Individually replaceable if badly damaged
• Bonded or riveted installation
• Exclusive MG Off Road design
• Designed and manufactured entirely in Italy

Fitment

• Suzuki SJ 410
• Suzuki SJ 413
• Suzuki Samurai (1981-1998)
• Suzuki Santana (up to 2004)

What's included

• 1 corner guard in 3+2 aluminium diamond plate, in the selected configuration
• Panel ready to fit

Sealant and rivets not included: the choice of fixing method is left to the installer.

Join the expedition, join MG Off Road.

Shipping: Every corner guard is handcrafted in our workshop. Orders ship within 6 days. For specific requirements or urgent orders, get in touch.
