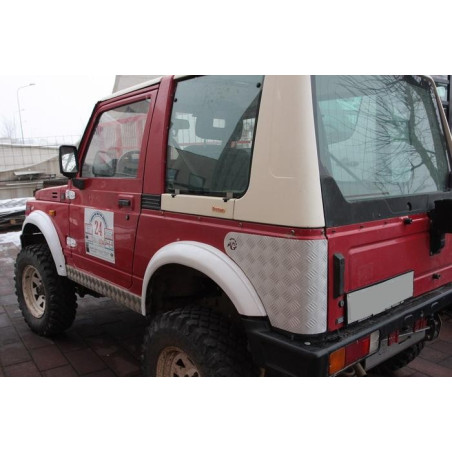

Rear Diamond Plate Corners for Suzuki SJ - Samurai, 3+2 Aluminium - MG Off Road

The rear corners of the Samurai take the heaviest toll. Reversing in tight spaces, dropping off ledges, catching rock on the way out: it is the first place to dent, and on most of the ones still running the mark is already there.

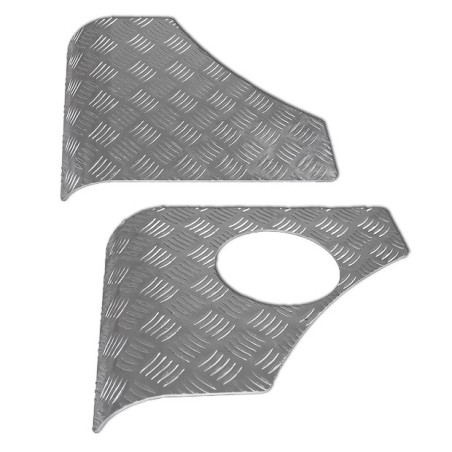

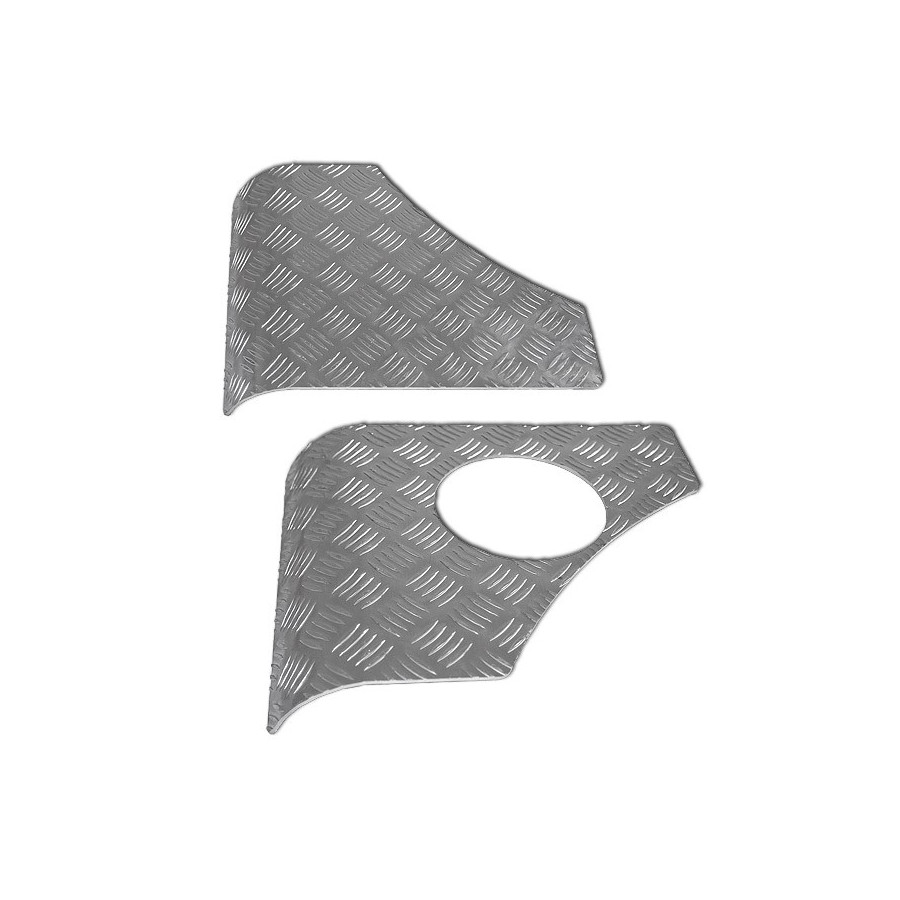

The MG Off Road rear corner guards are made from 3+2 aluminium diamond plate — 3 mm base plus 2 mm relief — and wrap the full exposed corner.

They protect, and they cover

The guard works on two fronts. On sound metal it acts as a barrier: it takes the hit instead of the bodywork, and if badly damaged it gets replaced. On metal that is already marked, it covers the dent and gives the corner a clean line back, without a trip to the body shop.

The diamond relief is not just a look: the pressed pattern stiffens the plate, so at equal thickness it resists bending better than a flat surface.

Cut and welded to follow the profile

The Samurai's rear corner is not a simple curve. A 5 mm plate cannot follow it by bending alone: either you approximate it with a panel that never sits flush, or you cut it and weld it.

We chose the second. Every guard is cut in half and re-welded to reproduce the real curvature of the body and sit flush across the whole surface.

The weld stays visible on the diamond relief: that is what a part built around the real profile looks like, rather than a simplified version of it.

Aluminium, not steel

Aluminium does not rust. A painted steel guard, once chipped, starts corroding exactly where mud and salt sit — and passes the rust on to the panel underneath. That problem does not arise here.

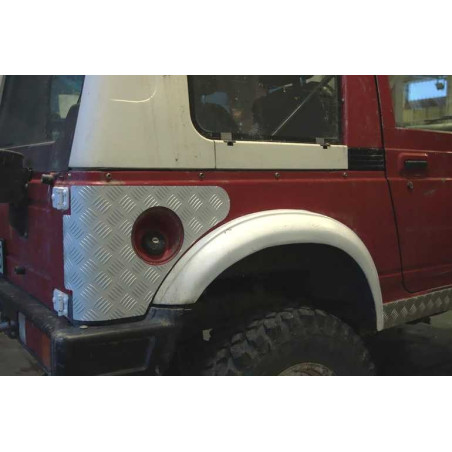

Fuel filler cut-out

The opening for the fuel filler is already formed in the panel. No trimming on fitting. The guard does not extend over the rear light, which stays clear and accessible.

Two versions

The Samurai's rear profile differs between soft top and hard top: the guards follow the bodywork, so the two versions are not interchangeable.

Select yours from the menu above. If you are unsure which one your vehicle needs, get in touch before ordering.

Installation

Fitting can be done two ways:

• Bonded — with structural sealant or automotive silicone, without drilling the original panel
• Riveted — aluminium drills and rivets with no special tooling, for a firmer mechanical fixing

A note on fitting

The Samurai was built for over twenty years, and after decades of use, repairs and replaced panels, no two of them share exactly the same corner radius.

Depending on your vehicle's bodywork, some minor adjustment may be needed during installation. This is the normal condition for this type of product, and is stated by overseas manufacturers of the same item.

Complete the protection

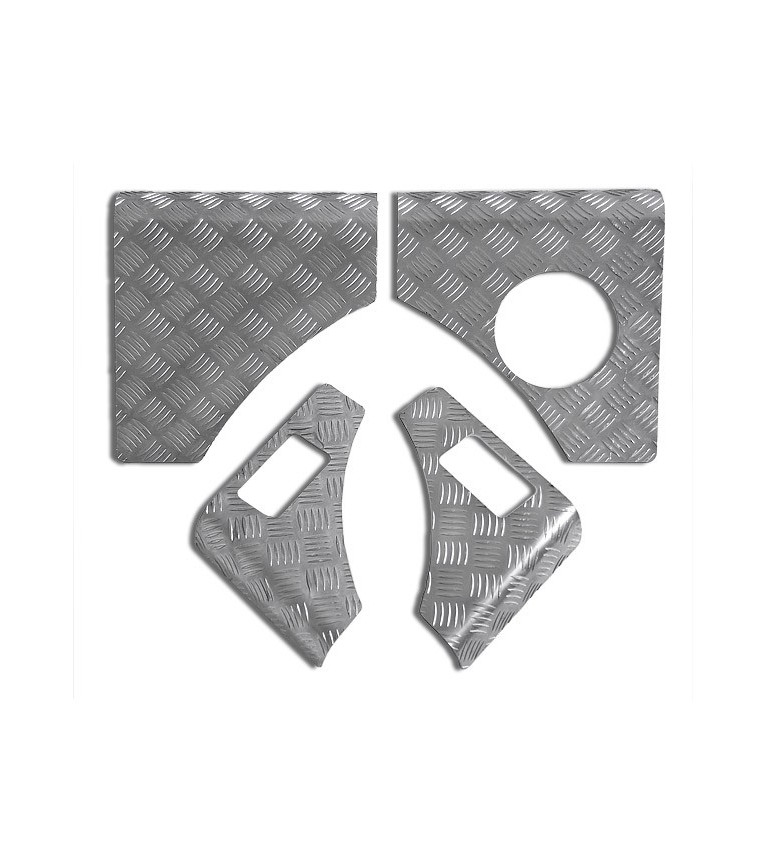

Front corner guards are also available, with the indicator cut-out. The full front + rear kit is the better value.

Designed and built entirely in Italy, in our workshop in the Apennines.

Key features

• 3+2 aluminium diamond plate (3 mm base, 2 mm relief — 5 mm total)
• Available for soft top or hard top versions
• Cut and welded to follow the real body curvature
• Fuel filler cut-out already formed
• Diamond relief stiffens the panel
• Rust-free: resists mud, water crossings and road salt
• Covers existing dents on the corner
• Sacrificial function: replaceable if badly damaged
• Bonded or riveted installation
• Sold as a pair (left and right)
• Front corner guards and full kit also available
• Exclusive MG Off Road design
• Designed and manufactured entirely in Italy

Fitment

• Suzuki SJ 410
• Suzuki SJ 413
• Suzuki Samurai (1981-1998)
• Suzuki Santana (up to 2004)

What's included

• Pair of rear corner guards in 3+2 aluminium diamond plate (left and right)
• Panels ready to fit

Sealant and rivets not included: the choice of fixing method is left to the installer.

Join the expedition, join MG Off Road.

Shipping: Every corner guard is handcrafted in our workshop. Orders ship within 6 days. For specific requirements or urgent orders, get in touch.
